Configure VLAN Network with TP-Link Omada Controller

In this tutorial, you will be shown how to configure a new VLAN network using TP-Link Omada Controller.

Let’s get started.

  1. Log into your cloud controller either using the omada.toplinkcloud.com URL or The IP address assigned to the TP-Link Omada Controller.
  2. Once logged in go ahead and expand the menu by sliding your mouse to the left bar.
  3. Click on Settings down at the bottom.
  4. Afterwards, click on Wired Networks and then click LAN.
  5. Click the Create New Lan button at the bottom.
  6. I will be creating a new network for my IOT devices.

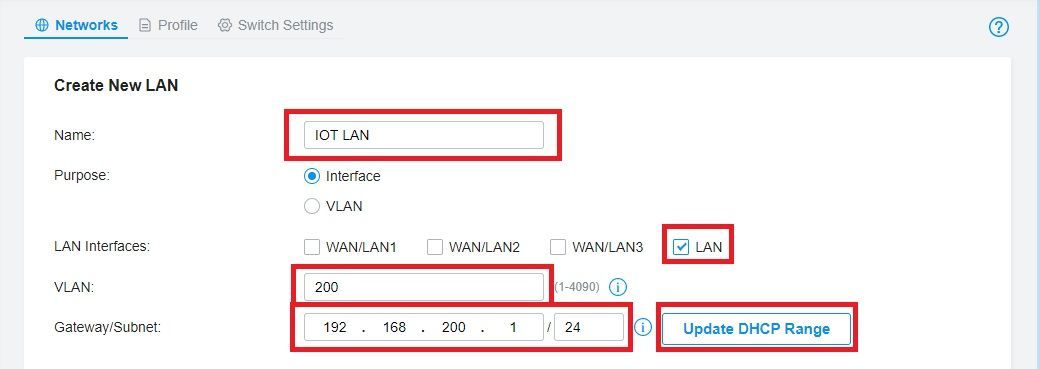

  7. In the Name field I will be calling my network IOT LAN.
  8. Make sure to checkmark LAN.
  9. I like to keep my VLAN ID the same as the subnet address
  10. Here I decided to use VLAN 200 and Subnet 192.168.200.1/24
  11. Click Update DHCP Range.
  12. If you scroll down a few you should see the DHCP Pool, this should give you 250+ address. You can append this as needed.
  13. Click Save when finished!



I hope this article was helpful, if you have any questions, please feel free to contact me. If you would like to be notified of when I create a new post, you can subscribe to my blog alert.
