Install UniFi Controller On Ubuntu 20.04 Linode

In this tutorial you will be shown how to install the UniFi Controller software with SSL on Ubuntu 20.04 using a Linode VPS.

The current version of UniFi SDN Controller that we will be installing is 6.2.23 Of course new packages will be released and they can be found on there UniFi Software Download Page. The script we will be using will install the latest version.

Linode VPS

Lets Get Started!

Prerequisites

  • Create a VPS server on Linode. The $10 plan meats minimum specifications and should be just fine up to 250 devices. You can even enable the option to create VPS backups witch is ideal.
  • To access the UniFi controller with a domain you will need to create an A record pointing to VPS server’s public IP address.

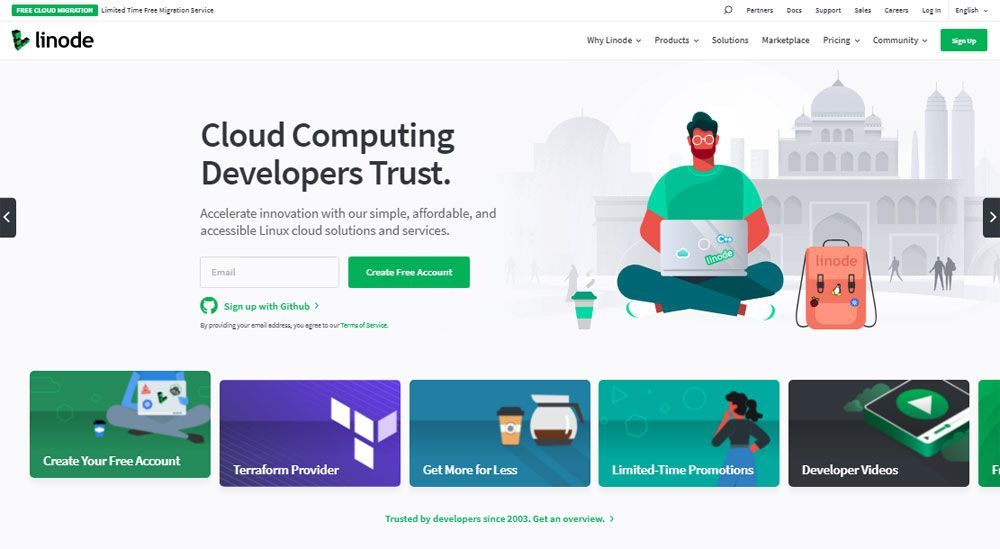

Getting Started With Linode

  1. Sign Up and Log into your Linode account and click the blue [Create Linode] button.
  2. The Distribution we will be selecting is Ubuntu 20.04 LTS.
  3. Select the best Region of yourself.
  4. Select the VPS plan you would like to use.
  5. Give your server a Label. I will be giving it a FQDN label of unifi.patrickdomingues.com.
  6. Give it a secure root password. Click here to generate a password.
  7. Everything else you can skip but if you want to have backups check mark their backup box.
  8. Click the blue [Create Linode] button on the right to finish
  9. You should now see a page with details of your new Linode VPS.
  10. Now that you have your server IP address , create a name \ A record pointing to your server IP.

Lets SSH into Ubuntu 20.04 and perform some updates.

  1. To SSH into the server we will be using Putty. Download and install Putty.
  2. Open up putty and type in the IPv4 address of your server and click open.
  3. Log into your Ubuntu 20.04 server with the username and password.
  4.  started with making sure we have the latest updates installed.
sudo apt update
sudo apt upgrade
sudo apt-get install ca-certificates wget -y

5. Give it a few minutes for the updates to install and afterwards run the following command to reboot.

reboot

Lets Install UniFi SDN Control Panel on Ubuntu 20.04

  1. Once the server is rebooted and your reconnected into the server using SSH we will now get started with running the following command. This script was created by Glenn and its very useful.
rm unifi-latest.sh &> /dev/null; wget https://get.glennr.nl/unifi/install/install_latest/unifi-latest.sh && bash unifi-latest.sh

2. You will be prompted to keep the script which here I type in: Y
3. You will be prompted to apply some updates to the system, type in: Y
4. Now just wait while the installation proceeds to install some required software.
5. Next prompt will be to install script to be able to update Unifi Network Controller via APT, type in: Y
6. You should now be complete with the installation.
7. Lets make sure that the Unifi Controller service auto starts with the following command.

sudo systemctl enable unifi

8. We will now configure a proper firewall with rules for your Ubuntu 20.04 Server. We will be using the simple ot use ufw firewall. Before we turn on the firewall lets add some ports to the firewall rules.

sudo ufw allow 22
sudo ufw allow 8080
sudo ufw allow 8880
sudo ufw allow 8443
sudo ufw allow 80
sudo ufw allow 443
sudo ufw allow 3478/udp
sudo ufw allow 10001/udp
sudo ufw allow 6666/udp
sudo ufw allow 47763/udp

9. Now that we have the rules in place we can enable the ufw firewall and set it to auto start.

sudo systemctl enable ufw
sudo ufw enable

At this point the controller is up and running and properly configured on the firewall and server. Lets move forward with configuring SSL certificate for your domain!

Install SSL Certificate For Your Domain To Access Unifi Controller

  1. To start we will need to install LetsEncrypt
sudo apt-get update
sudo apt-get install letsencrypt

2. Run the following command to generate a SSL Certificate for your domain. Please change the domain so it reflects your domain.

sudo letsencrypt certonly

3. Now lets download a script that will do the majority of the work for you to import the SSL Certificate into the Unifi Controller.

sudo wget https://raw.githubusercontent.com/stevejenkins/unifi-linux-utils/master/unifi_ssl_import.sh -O /usr/local/bin/unifi_ssl_import.sh

4. Lets change the Permission of the script using the following command

sudo chmod +x /usr/local/bin/unifi_ssl_import.sh

6. With these following steps we will be editing the script to use your domain.

sudo nano -w /usr/local/bin/unifi_ssl_import.sh

Within this text view locate and change the following.

Add your domain
UNIFI_HOSTNAME=unifi.yourdomain.com

Comment the three lines for Fedora/RedHat/Centos by placing a # for it:
#Uncomment following three lines for Fedora/RedHat/CentOS
#UNIFI_DIR=/opt/UniFi
#JAVA_DIR=${UNIFI_DIR}
#KEYSTORE=${UNIFI_DIR}/data/keystore

Uncomment the three lines for Debian/Ubuntu
# Uncomment following three lines for Debian/Ubuntu
UNIFI_DIR=/var/lib/unifi
JAVA_DIR=/usr/lib/unifi
KEYSTORE=${UNIFI_DIR}/keystore

Set the Let’s Encrypt mode to yes:
If you only enable the line, by removing the #, and you will have to set the value to yes.
LE_MODE=yes

Save and close the file
Press Ctrl +X followed by Y and Enter to save and close the file.

7. Now lets run the script to import the SSL cert info the Unifi Controller.

sudo /usr/local/bin/unifi_ssl_import.sh

8. We will now create a script to auto renew the SSL cert for you. Run the following command to create a new file.

sudo nano -w /etc/crontab

And add the following content into it
0 */12 * * * root letsencrypt renew
5 */12 * * * root unifi_ssl_import.sh
Press Ctrl +X followed by Y and Enter to save and close the file.



Installing Fail2ban

Fail2ban will protect your cloud hosted Unifi Controller from brute force attacks. This script will ban people after 4 failed attempts for 10 minutes.

rm unifi-fail2ban.sh &> /dev/null; wget https://get.glennr.nl/unifi/extra/unifi-fail2ban.sh && bash unifi-fail2ban.sh

All Done! You should now have a 100% working SSL protected Unifi Controller installed on Ubuntu 20.04 hosted on a Linode VPS.

I hope this article was helpful, if you have any questions, please feel free to contact me. If you would like to be notified of when I create a new post, you can subscribe to my blog alert.
