Ubiquiti Unifi USG-PRO-4 Security Appliance

The Ubiquiti UniFi Security Gateway Pro (USG-PRO-4)is a is an enterprise Gateway Router with Gigabit Ethernet and two combination SFP/RJ45 ports, combining reliable security features with high-performance routing technology in a cost-effective unit.

The USG-PRO-4 is rack-mountable with fiber connectivity options and a dual-core, 1 GHz processor for maximum hardware‑accelerated performance.

Ubiquiti UniFi Security Gateway Pro Key Features

  • Enterprise Gateway Router with Gigabit Ethernet
  • Advanced Security, Monitoring, and Management
  • Integrates with UniFi Controller Software
  • (2) 10/100/1000 RJ45 Gigabit ports & (2) SFP combo ports
  • Dual-core 1GHz processor
  • Rackmountable form factor with fibre connectivity options

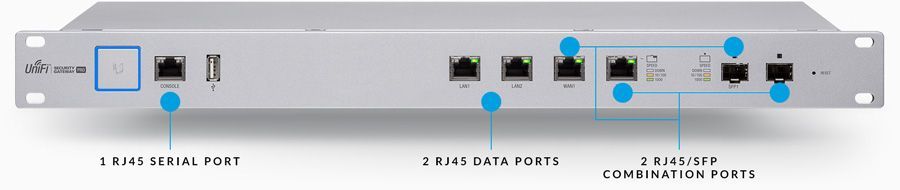

Optical Fiber Connectivity
The Ubiquiti UniFi Security Gateway Pro offers two optional SFP ports for fiber connectivity to support backhaul applications.
Powerful Firewall Performance

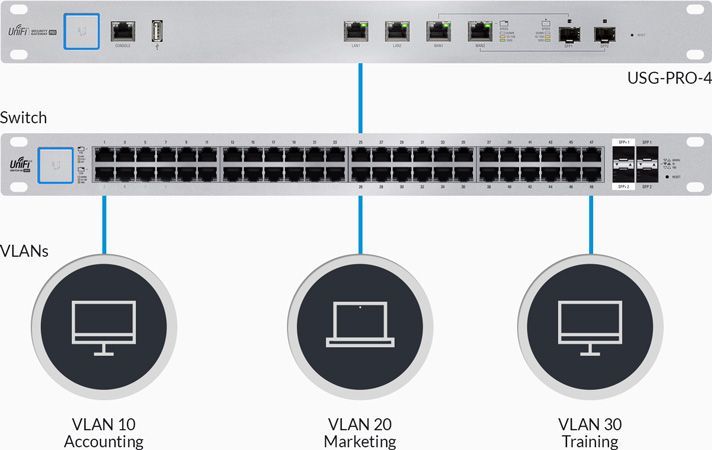

The Ubiquiti UniFi Security Gateway Pro offers advanced firewall policies to protect your network and its data.Convenient VLAN Support
The Ubiquiti UniFi Security Gateway Pro can create virtual network segments for security and network traffic management.

Enterprise Grade Network Management Software

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support

PRODUCT SPECIFICATION

SECURITY GATEWAY
Dimensions 484 x 44 x 164 mm (19.06 x 1.73 x 6.46″)
Weight 2.3 kg (5.07 lb)
Max. Power Consumption 40W
Power Supply Internal AC/DC Power Adapter, 60W (24V, 2.5A)
Power Input 110 – 240VAC
LEDs Status and Speed/Link/Activity
Networking Interface (1) RJ45 Serial Port (2) 10/100/1000 RJ45 Ports (2) 10/100/1000 RJ45/SFP Combination Ports
Layer 3 Forwarding Performance 1,000,000 pps 1 Gbps per Port Line Rate
Processor Dual-Core 1 GHz, MIPS64 with Hardware Acceleration for Packet Processing
Memory 2 GB DDR3 RAM
Flash Memory Support 4 GB
Certifications CE, FCC, IC
Rackmount Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 to 90% Noncondensing
